ProjectMayhem Posted November 4, 2019 Report Share Posted November 4, 2019 Hi everyone, 1st post here... Anyways, we're a new team considering a few cars, of which one is a hatchback. We would want to install a fuel cell and know that this must be sealed off. How sealed off does this need to be? If we were mounting in a way that we would just need a top access panel, what can we do to seal it off, while still having the ability to access when needed? I know there's the firebarrier stuff in the caulking tube, but that's fairly permanent. If we want an access "hatch" for service reasons, what do we do? Quote Link to comment Share on other sites More sharing options...
IPF Racing Posted November 4, 2019 Report Share Posted November 4, 2019 I have a riveted in panel that I can drill out to get to everything on top of the cell or if I remove my tail light I can get to it all from outside. It does need to be extremely sealed off based on the rule update for 2019. Quote Link to comment Share on other sites More sharing options...
DRVOLKS Posted November 5, 2019 Report Share Posted November 5, 2019 Mine is in a box for the fuel cell and seal with foam and metal tape. I make the top in 2 pieces so I can get to the fuel pumps and surge tank fast. Quote Link to comment Share on other sites More sharing options...

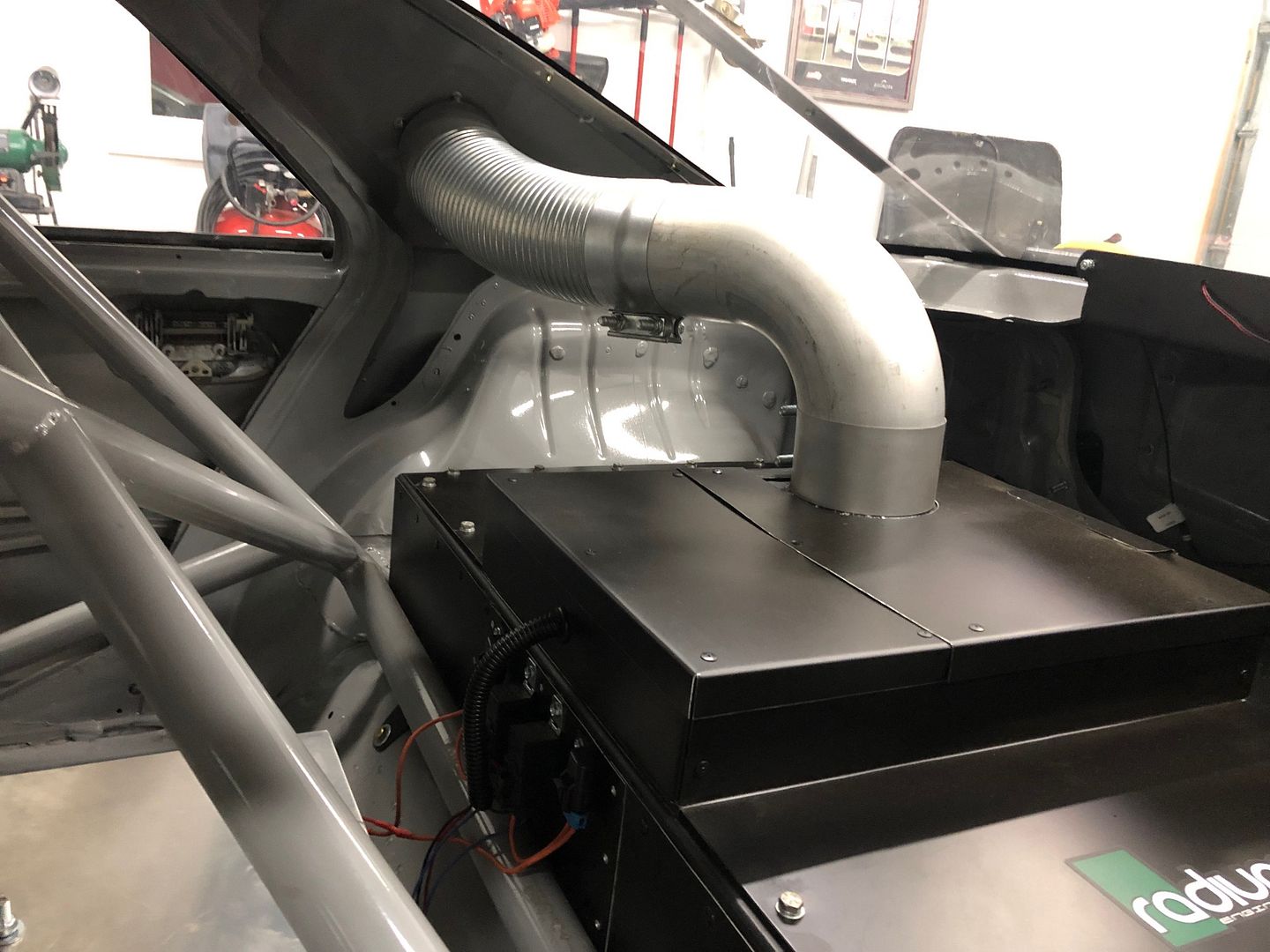

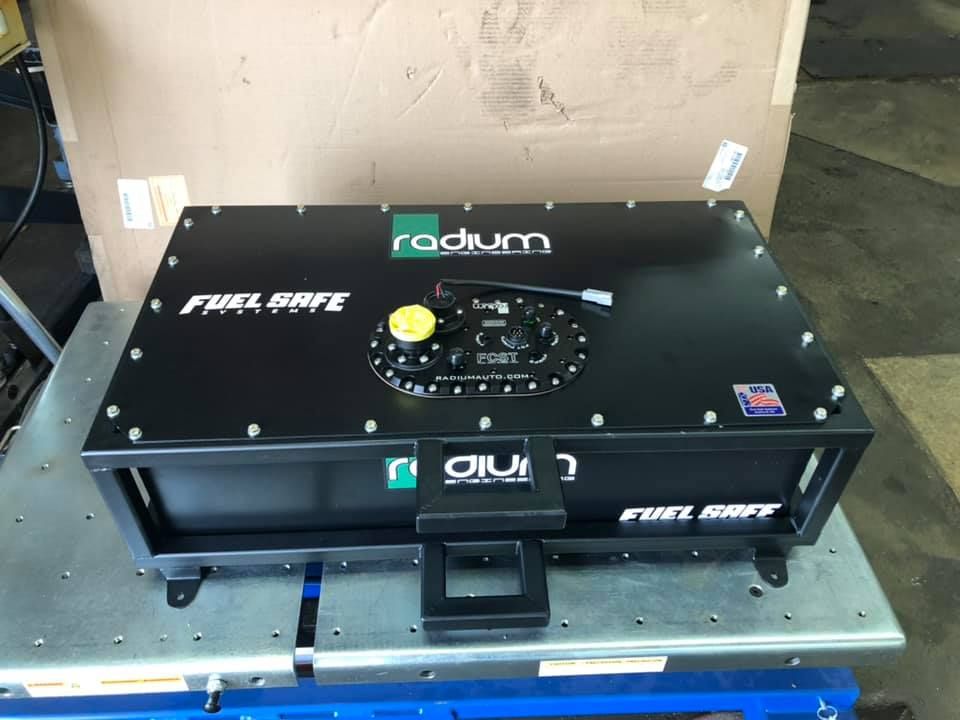

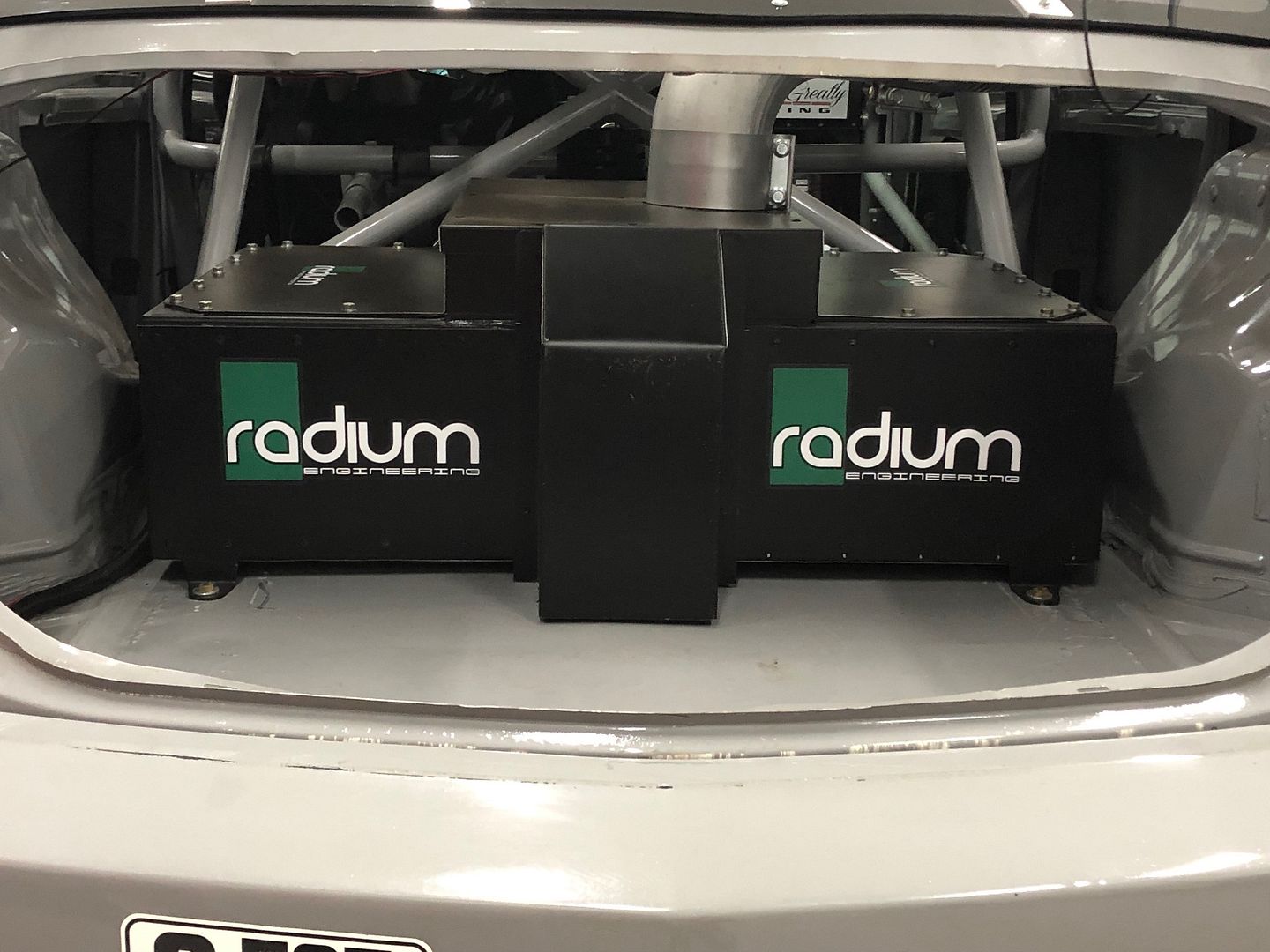

hcsi99 Posted November 5, 2019 Report Share Posted November 5, 2019 We put our cell in a 1 inch by inch square tube frame and then covered the frame, top, and filler. 1 Quote Link to comment Share on other sites More sharing options...
ProjectMayhem Posted November 5, 2019 Author Report Share Posted November 5, 2019 24 minutes ago, hcsi99 said: We put our cell in a 1 inch by inch square tube frame and then covered the frame, top, and filler. That looks awesome. I found the Radium stuff, how do you like it? Seems like it's pretty turnkey? Run 12v to the pumps, plumb up the lines, call it a day. Quote Link to comment Share on other sites More sharing options...
hcsi99 Posted November 5, 2019 Report Share Posted November 5, 2019 20 minutes ago, ProjectMayhem said: That looks awesome. I found the Radium stuff, how do you like it? Seems like it's pretty turnkey? Run 12v to the pumps, plumb up the lines, call it a day. Thank you! Radium's products and customer service are 2nd to none. They are also always developing new products too. I'll be upgrading to there new discriminator vent and adding an overflow that exits externally into a catch container. Quote Link to comment Share on other sites More sharing options...
Indysupra Posted November 7, 2019 Report Share Posted November 7, 2019 On 11/5/2019 at 9:12 AM, hcsi99 said: We put our cell in a 1 inch by inch square tube frame and then covered the frame, top, and filler. Clean install. Looks great! 1 Quote Link to comment Share on other sites More sharing options...
Bremsen Posted November 11, 2019 Report Share Posted November 11, 2019 Our cell was already sunken into the floor so we built a box over the top of the frame to enclose the cell plate/hoses/pumps/surge. I'll post pics of ours when its finished (hopefully sometime this/next week). Quote Link to comment Share on other sites More sharing options...
